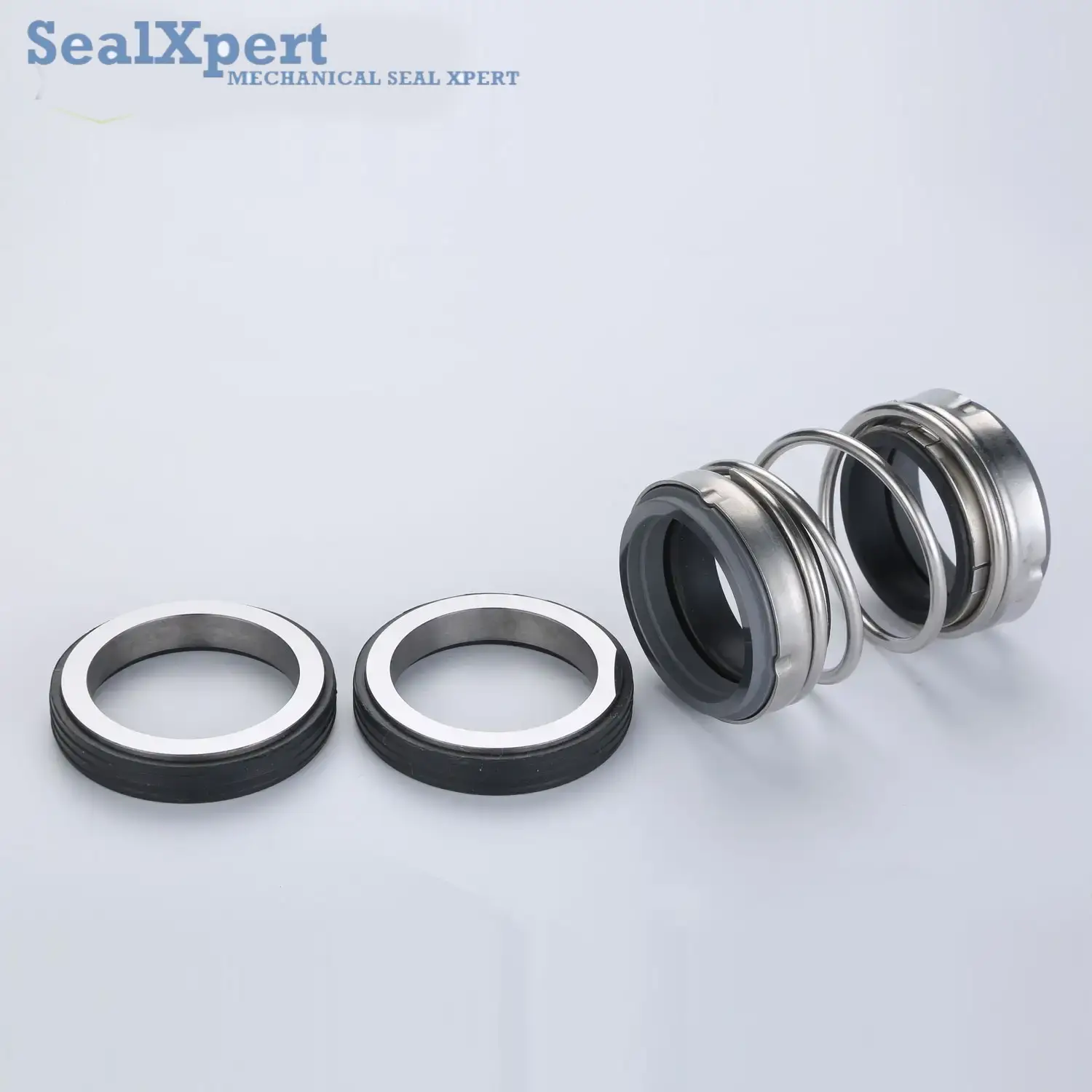

SDM

SDM

Basic Features

  • Structure: Double-End
  • Pressure: General Pressure Mechanical Seals
  • Speed: General Speed Mechanical Seal
  • Temperature: Medium Temperature Mechanical Seal
  • Performance: Wear
  • Standard: DIN24960, ISO3069, GB6556
  • Model NO.: SDM
  • Balance: Unbalanced
  • Specification: Inner Diameter: 12 mm to 100 mm
Category:

  • Operation Parameters:

    • Pressure: 0 ~ 0.8 MPa
    • Temperature: – 20 ~ 120 ºC
    • Linear Speed: 10 m/s or less

    Materials:

    • Rotary Ring Face: SiC/TC/Carbon
    • Stationary Ring Face: Al2O3/SiC/TC
    • Elastomers: NBR/EPDM/Viton
    • Springs: SS304/SS316
    • Metal Parts: SS304/SS316

    Mediums: oil, water, weak acid and alkali and other corrosive mediums.

    Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

Description

Structural Features: double end, unbalanced, independent direction of rotation, rubber bellow, bellow transmission. This component has a compact structure with good compatibility, stability and easy installation. This is a back to back structure double end mechanical seal.

Industrial Standards: DIN24960, ISO3069, GB6556

Scopes of Application: widely used in oil and water circulation pumps, piping pumps, and vacuum pumps for industries such as sewage treatment and paper-making.
