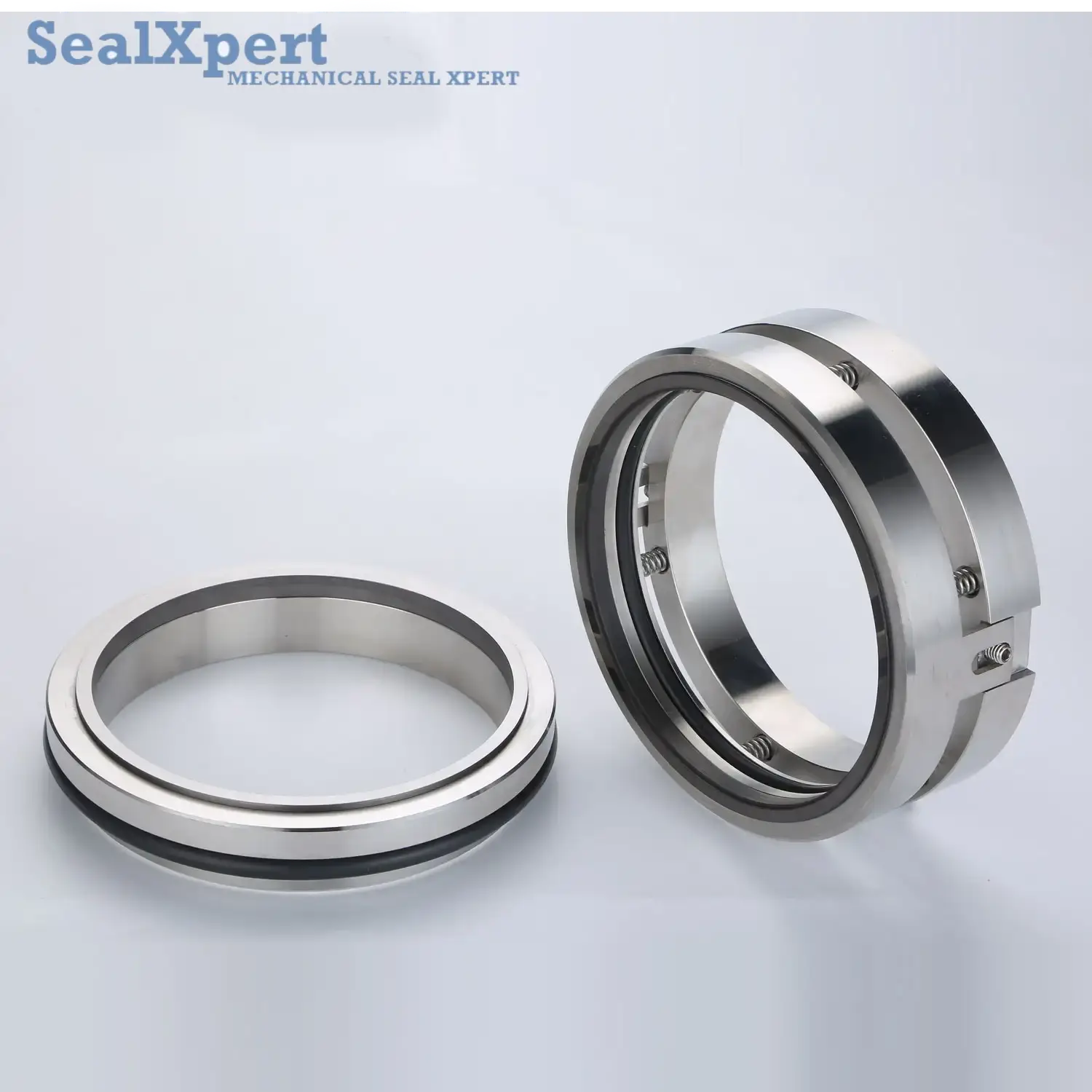

U46

U46

Basic Features

  • Structure: Single-End
  • Pressure: General Pressure Mechanical Seals
  • Speed: General Speed Mechanical Seal
  • Temperature: Medium Temperature Mechanical Seal
  • Performance: Wear and Corrosion
  • Standard: DIN24960, ISO3069, GB6556-94
  • Model NO.: U46
  • Balance: Unbalanced
  • Specification: Inner Diameter: 25 to 200 mm
Category:

  • Operation Parameters:

    • Pressure: 1.2 MPa or less
    • Temperature: – 20 ºC to 200 ºC
    • Linear Speed: 15 m/s or less

    Materials:

    • Rotary Ring Face: TC/SiC
    • Stationary Ring Face: TC/SiC
    • Elastomers: FKM/Aflas/EPDM/FFKM
    • Springs: SS304/SS316/HC276
    • Metal Parts: SS304/SS316/SS316L

    Mediums: oil, water, amorphism acid, alkali, salt and organic solvents.

    Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

Description

Structural Features: single end, multiple springs, unbalanced, independent rotary direction, shift transmission mechanical seal for kettles, mixers and agitators and other rotary devices listed above.

Industrial Standards: DIN24960, ISO3069, GB6556-94

Scopes of Application: widely used in reaction kettles, mixers, paper machine, slurry pumps, axially splitpumps, vaccum pumps, compressors and chemical centrifugal pumps, for industries such as chemical processing, refrigeration, oil refining, petrochemical engineering, waste water treatment, power generation, paper making and pharmacy.
