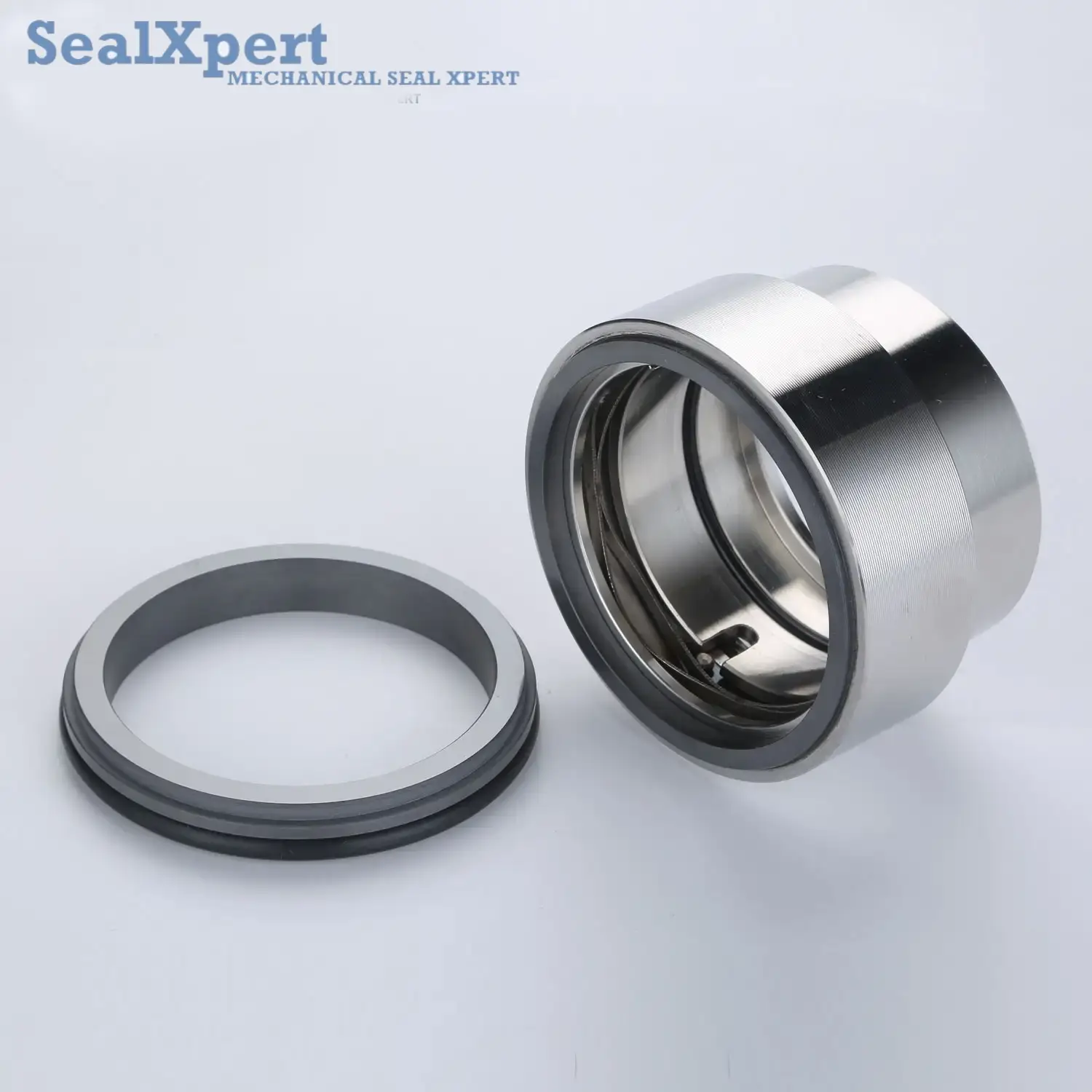

AK5M

AK5M

Basic Features

  • Structure: Single-End
  • Pressure: High Pressure Mechanical Seals
  • Speed: High Speed Mechanical Seal
  • Temperature: High Temperature Mechanical Seal
  • Performance: Corrosion
  • Standard: DIN24960, EN12756, ISO03069, GB6556
  • Model NO.: AK5M
  • Balance: Balanced
  • Specification: Inner Diameter: 38 mm, 48 mm, 53 mm, 65 mm, 90 mm, 100 mm
Category:

  • Operation Parameters:

    • Pressure: 0 ~ 2.5 MPa
    • Temperature: – 40 ~ 230 ºC
    • Linear Speed: 20 m/s or less

    Materials:

    • Rotary Ring Face: Carbon/SiC/TC
    • Stationary Ring Face: SiC/TC
    • Elastomers: NBR/EPDM/Viton/Aflas
    • Springs: SS304/SS316/PH17-4
    • Metal Parts: SS304/SS316/SS316L

    Mediums: oil, water, solvents, paper pulp and other mediums.

    Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

Description

Structural Features: single-end, balanced, independent direction of rotation, wave spring with spring protector. The spring is separated from the sealed mediums so it will not be jammed. This seal component has a simple structure and is easy to install with stable performance.

Industrial Standards: DIN24960, EN12756, ISO03069, GB6556.

Scopes of Application: widely used in chemical engineering, pulp production, pulp cooking, and sewage treatment. Designed for paper pulp pumps, sewage pumps, chemical pumps and other rotary devices and works and replacement to similar products of ANDRITZ and Sulzer.
