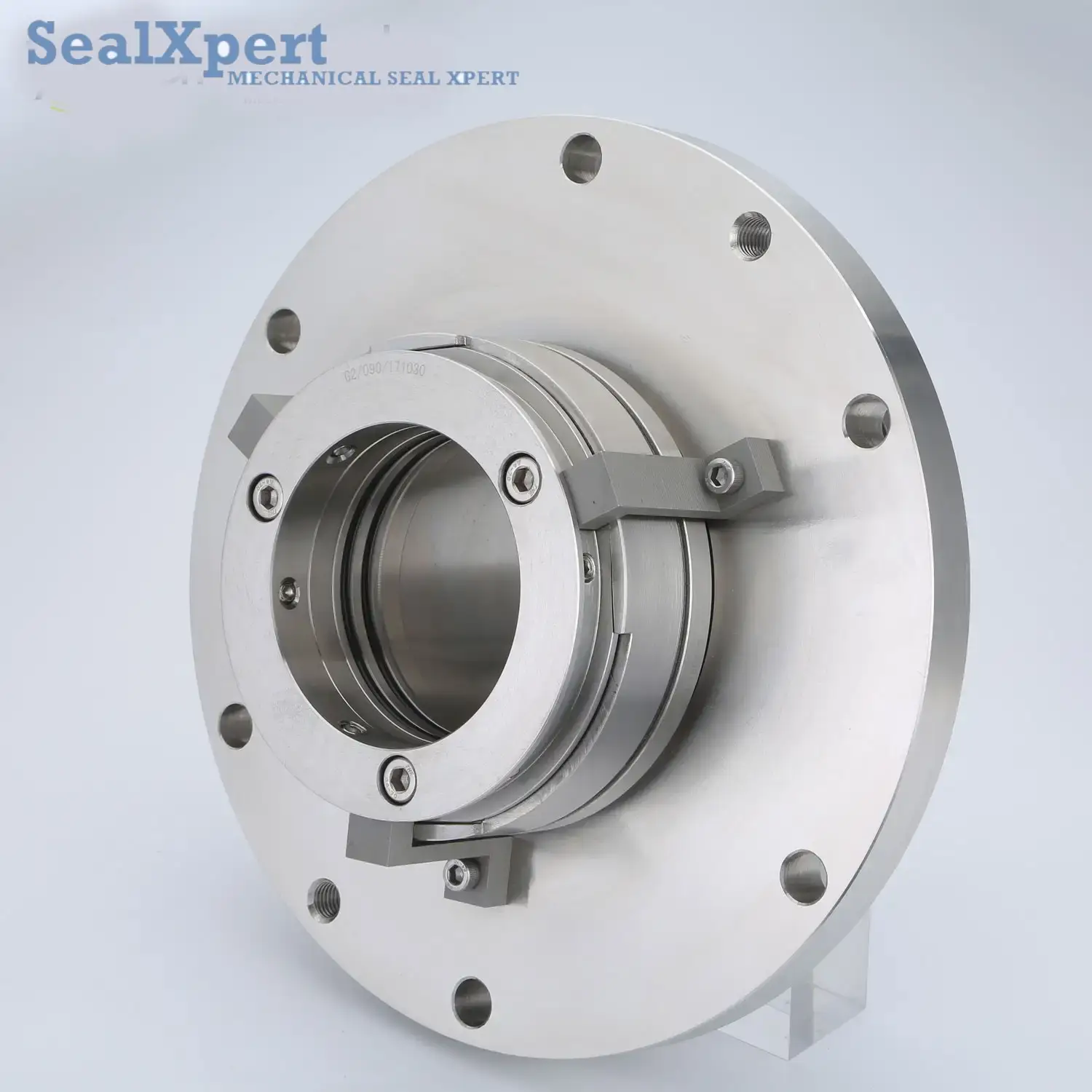

SAF

SAF

Basic Features

  • Structure: Double-End
  • Pressure: High Pressure Mechanical Seals
  • Speed: General Speed Mechanical Seal
  • Temperature: Medium Temperature Mechanical Seal
  • Performance: Corrosion
  • Standard: Specific Customization
  • Model NO.: SAF
  • Balance: Balanced
  • Specification: Inner Diameter: 45 mm to 200 mm
Category:

  • Operation Parameters:

    • Pressure: 0 ~ 1.5 MPa
    • Temperature: – 40 ~ 180 ºC
    • Linear Speed: 20 m/s or less
    • Pressure of Cooling Water: 25% higher than the subject’s operating pressure
    • Solid Capacity: 15% or less

    Materials:

    • Rotary Ring Face
    • Medium Side: SiC/TC
    • Sealing Water Side: SiC/TC
    • Stationary Ring Face
    • Medium Side: SiC/TC
    • Sealing Water Side: Carbon/SiC/TC
    • Elastomers: Viton/EPDM/PTFE/Aflas
    • Springs: SS316/HC276
    • Metal Parts: SS304/SS316/SS316L/2507/2205

    Mediums: oil, water, sulphite lyes, paper pulp, acid, alkali and other solvents.

    Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

Description

Structural Features: double-end, multiple springs, with spring protector, balanced, independent direction of rotation, spring standing mechanical seal. The component is cartridge seal with easy installation. The springs are not touching the sealed mediums so that there will be no jam caused by the high viscosity and crystallization active content. This makes sure the flexibility of the compensation ring and as a result, it lasts the lifetime of the whole component. Multi spring structure makes the load on the sealing faces balanced. The seal needs to work with sealing water, which has the pressure of 0.1 – 0.3 MPa and flow rate of 3 – 8 L/min.

Industrial Standards: Specific Customization.

Scopes of Application: mainly used in chemical engineering, pulp production, pulp drying, pulp screening, and sewage treatment. Designed for pressure screens and other filters. This component can work as an alternative to ANDRITZ SafeMatic seal support system.
