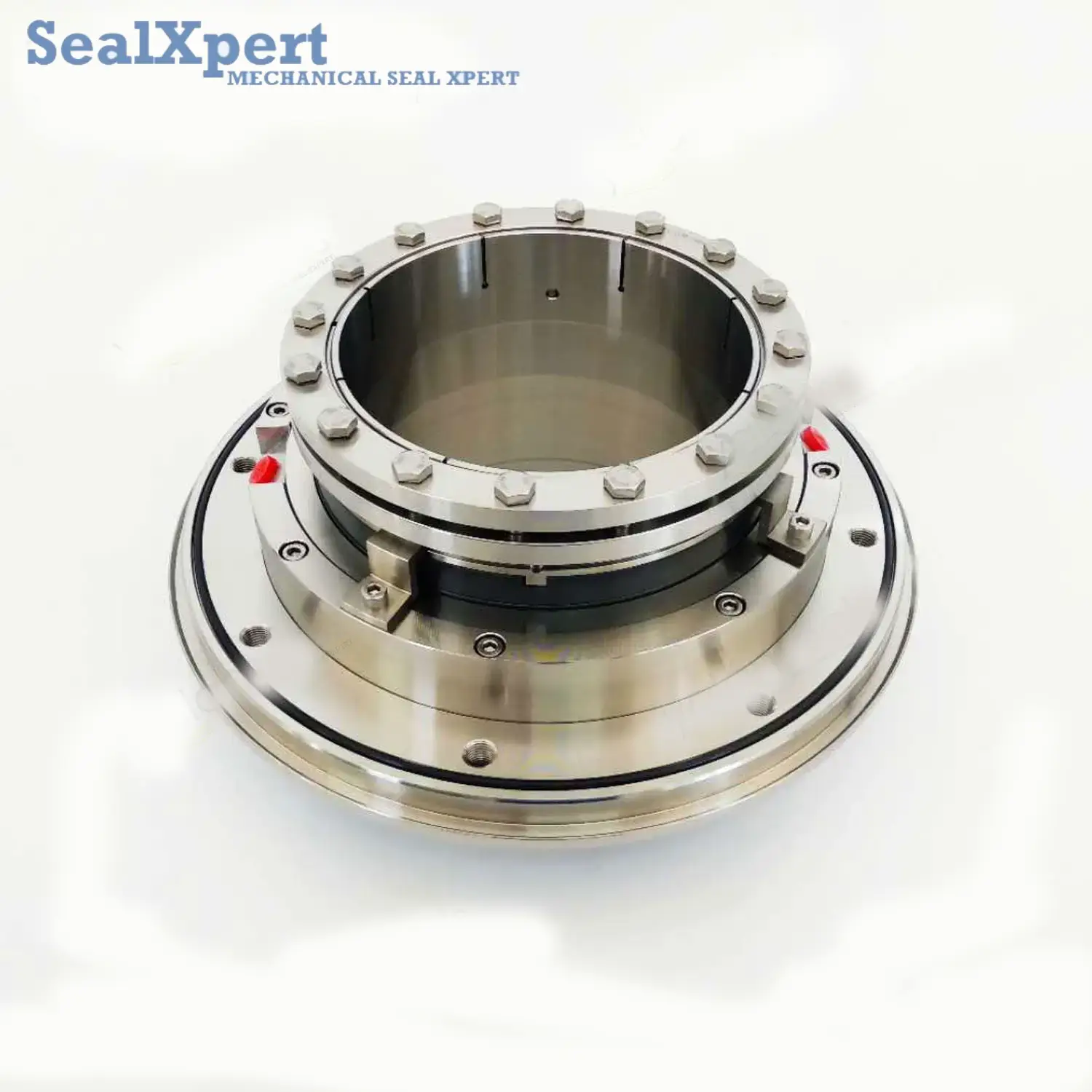

TL3-D1-220

TL3-D1-220

Basic Features

  • Structure: Double-End
  • Pressure: Medium Pressure Mechanical Seals
  • Speed: High Speed Mechanical Seal
  • Temperature: General Temperature Mechanical Seal
  • Performance: Wear and Corrosion
  • Standard: Specific Customization
  • Model NO.: TL3-D1-220
  • Balance: Balanced
  • Specification: Inner Diameter: 220 mm
Category:

  • Operation Parameters:

    • Pressure: 0 ~ 1.5 MPa
    • Temperature: – 20 ~ 180 ºC
    • Linear Speed: 15 m/s or less

    Materials:

    • Rotary Ring Face: SiC/TC
    • Stationary Ring Face: SiC/TC
    • Elastomers: FKM/Aflas/EPDM/NBR
    • Springs: SS304/SS316/HC-276
    • Metal Parts: SS304/SS316L/2507/2205

    Mediums: gypsum slurry, salt slurry, paper pulp and sewage etc.

    Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

Description

Structural Features: double end, multi springs, balanced, independent rotary direction, still structure, pin transmission. The still springs are suitable for high operating speed. The springs are separated from the sealed mediums so they will not be jammed. Piston design allows great axial shifting. The seal is cartridge design with easy installation and reliable performance.

Industrial Standards: Specific Customization.

Scopes of Application: designed for FGD system (Flue Gas Desulphurization System) and FGD circulating pumps.
