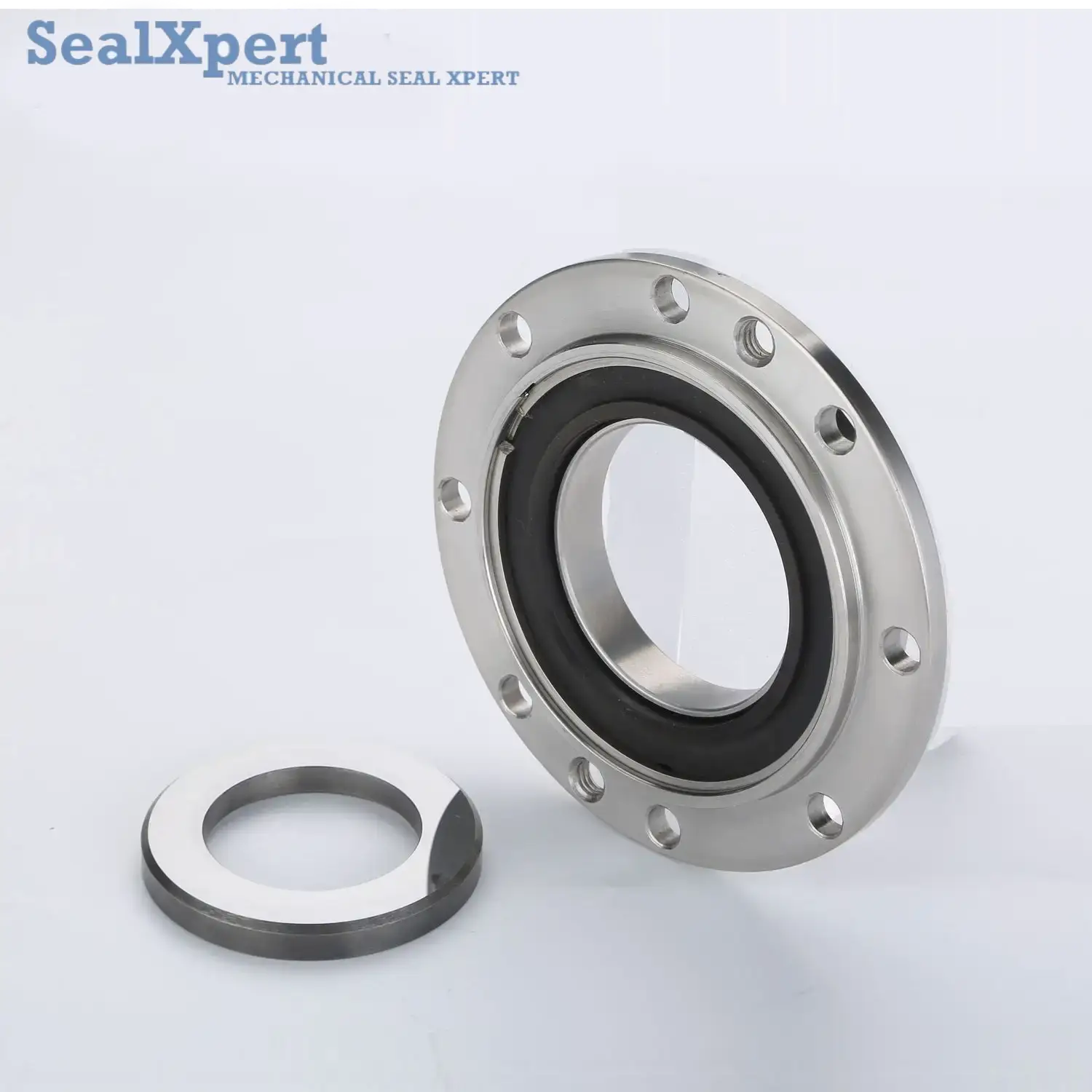

08J-08D

08J-08D

Basic Features

  • Structure: Single-End/Double-End
  • Pressure: Medium Pressure Mechanical Seals
  • Speed: High Speed Mechanical Seal
  • Temperature: Medium and Low Temperature Mechanical Seal
  • Performance: Wear
  • Standard: Specifically Customized
  • Model NO.: 08J-08D
  • Balance: Balanced
  • Specification: Inner Diameter: 15 mm to 80 mm
Category:

  • Operation Parameters:

    • Pressure: 0 ~ 3.0 MPa
    • Temperature: – 20 ~ 180 ºC
    • Linear Speed: 100 m/s or less

    Materials:

    • Rotary Ring Face: 9Cr18/TC/SiC
    • Stationary Ring Face: Carbon/SiC
    • Elastomers: Viton/EPDM/FFKM/PTFE
    • Springs: SS304/SS316/HC-276
    • Metal Parts: 410S/SS304/SS316L/HC-276

    Mediums: oil and other chemical mediums.

    Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

Description

Structural Features: single end, multi springs, balanced, independent rotary direction, still structure. The compensation components are pre-assembled with a compact and short structure. The load on the seal faces are balanced. The seal component is easy to install with a great balance so it works with high speed operational conditions.

Industrial Standards: Specifically Customized

Scopes of Application: widely used in Roots blowers, high speed pumps, gearboxes and other rotary devices with limited axial dimensions.
