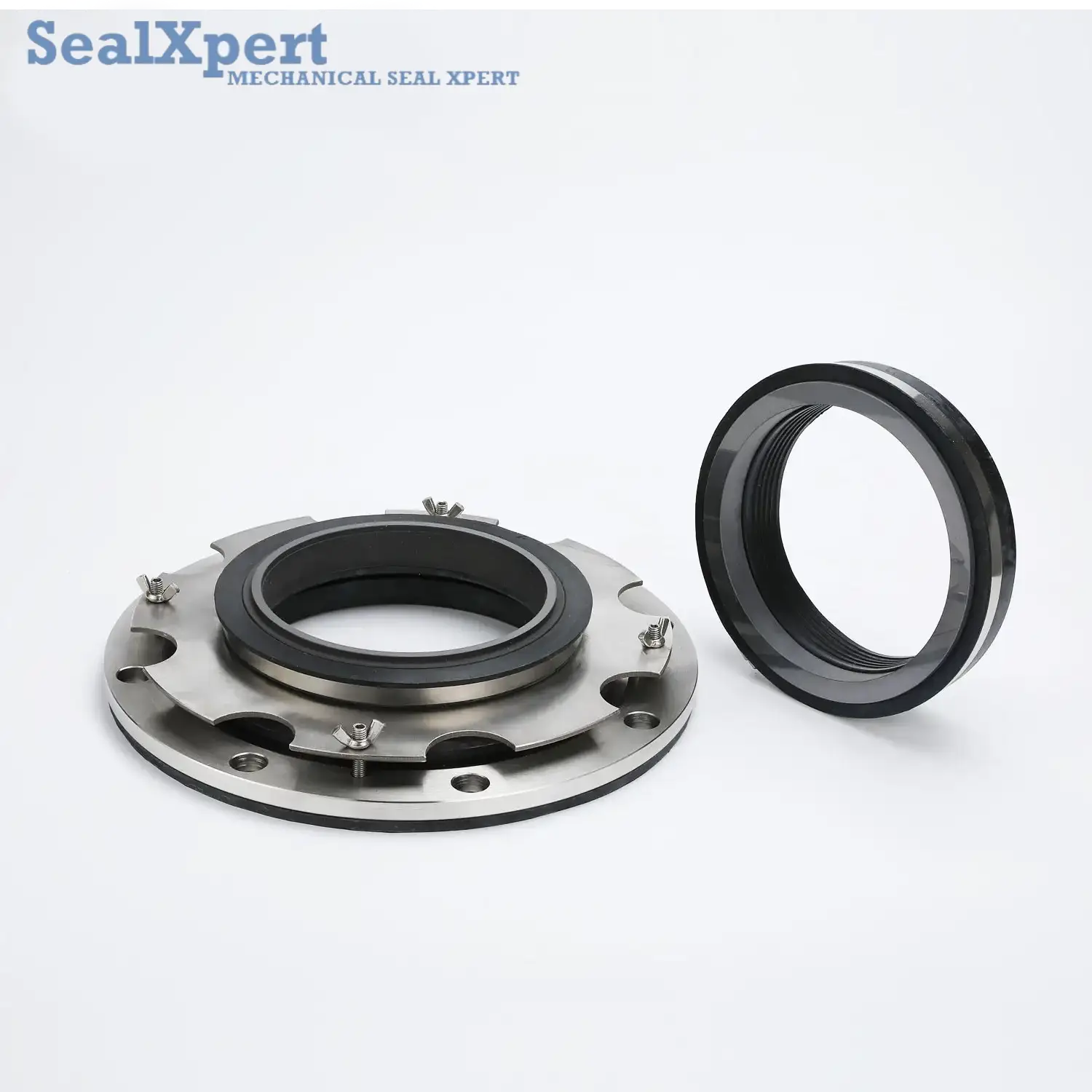

TRD-FL

TRD-FL

Basic Features

  • Structure: Single End
  • Pressure: Low Pressure Mechanical Seals
  • Speed: General Speed Mechanical Seal
  • Temperature: Room Temperature/Cryogenic/Deep Freeze
  • Performance: Weak Corrosion
  • Standard: Industrial Customization
  • Model NO.: YLTRD-FL
  • Balance: Balanced
  • Specification: Inner Diameter: 30 mm to 420 mm
Category:

  • Operation Parameters:

    • Pressure: 0 ~ 2.0 MPa
    • Temperature: ≤ 150 ºC
    • Linear Speed: ≤ 15 m/s

    Materials:

    • Rotary Ring Face: SUS304/SiC/TC
    • Stationary Ring Face: Carbon/SiC/TC
    • Elastomers: HNBR/EPDM/FKM
    • Metal Parts: SS304/SS316

    Mediums: water, oil, weak acid and alkali and etc.

    Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

Description

Structural Features: rubber bellow design. There is no relative movement between the shaft and the rotary part of the seal, so there is no wear and tear, no hysteresis. This mechanical seal is able to work with axial movement of ±3 mm. This seal component has a simple structure with great duration and reliability.

Industrial Standards: Specifically Customized

Scopes of Application: widely used in steel-making, metallurgy, galvanization and other similar industries. This mechanical seal was designed for immersion rolls.
