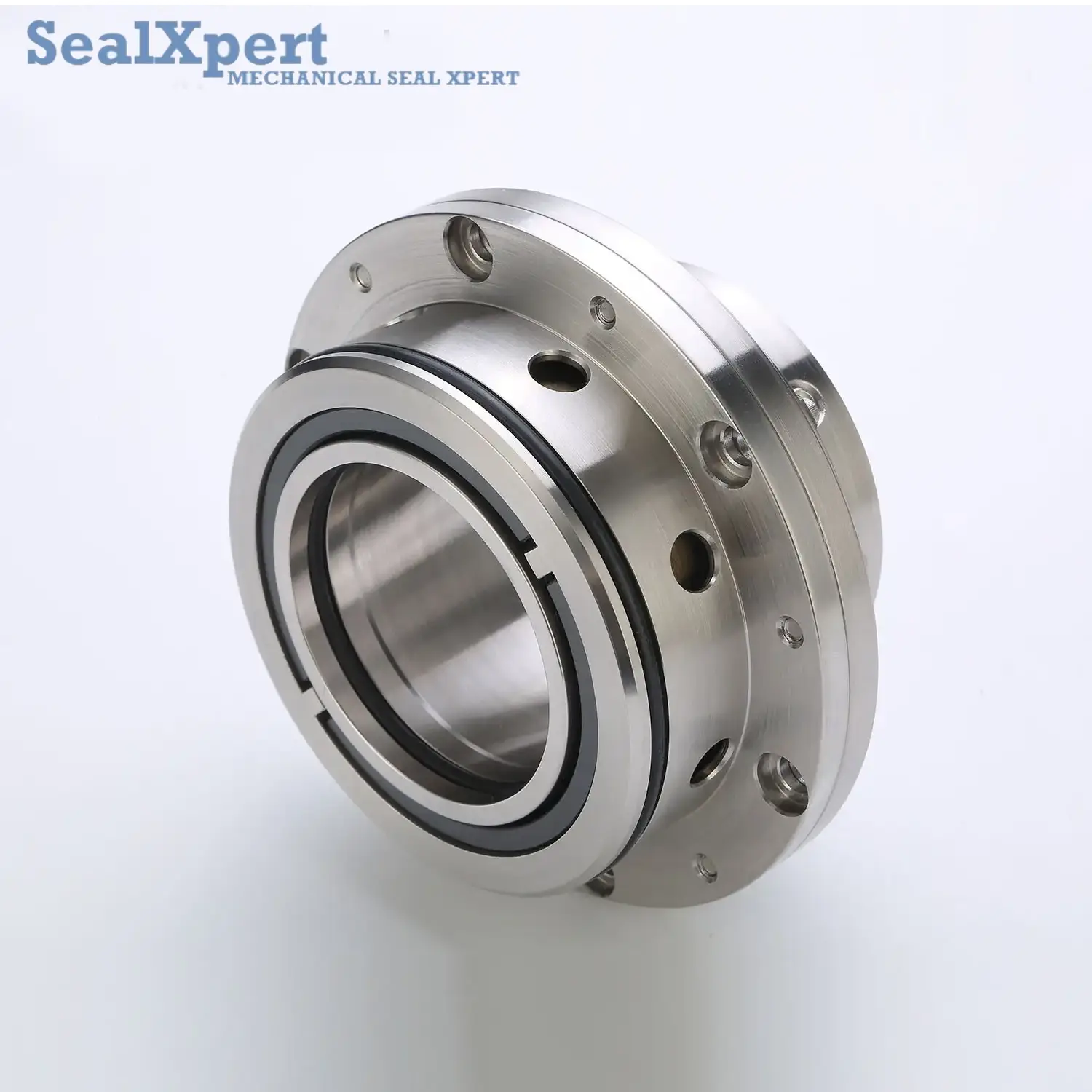

UU7002J

UU7002J

Basic Features

  • Structure: Double End
  • Pressure: General Pressure Mechanical Seals
  • Speed: Medium Speed Mechanical Seal
  • Temperature: General Temperature Mechanical Seal
  • Performance: Wear and Weak Corrosion
  • Standard: Specifically Customized
  • Model NO.: UU7002J
  • Balance: Unbalanced
  • Specification: Inner Diameter: 30 mm to 300 mm
Category:

  • Operation Parameters:

    • Pressure: 0.1 MPa to 0.8 MPa
    • Temperature: – 20 ºC to 180 ºC
    • Linear Speed: 15 m/s or less

    Materials:

    • Rotary Ring Face: Carbon/SiC/TC
    • Stationary Ring Face: Carbon/SiC/TC
    • Elastomers: NBR/FKM/PTFE/FFKM
    • Springs: SS304/SS316L/HC-276
    • Metal Parts: 2Cr13/SS304/SS316/HC-276/TA2

    Mediums: water, oil, and other generally corrosive mediums.

    Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

Description

Structural Features: double end, multi springs, unbalanced, independent rotary direction, cartridge mechanical seal. Double end and unbalanced structure, compensation ring component, the stationary ring and the sleeve are pre-assembled together. The structure of this seal is simple and easy to install. The locking mechanism of the seal is stable and reliable and the multiple springs make the loads on the seal faces balanced. There is no limit to the rotary direction. The seal can be installed into the cavity of the operating device.

Industrial Standards: Specifically Customized

Scopes of Application: widely used in Roots blowers and other types of blowers.
