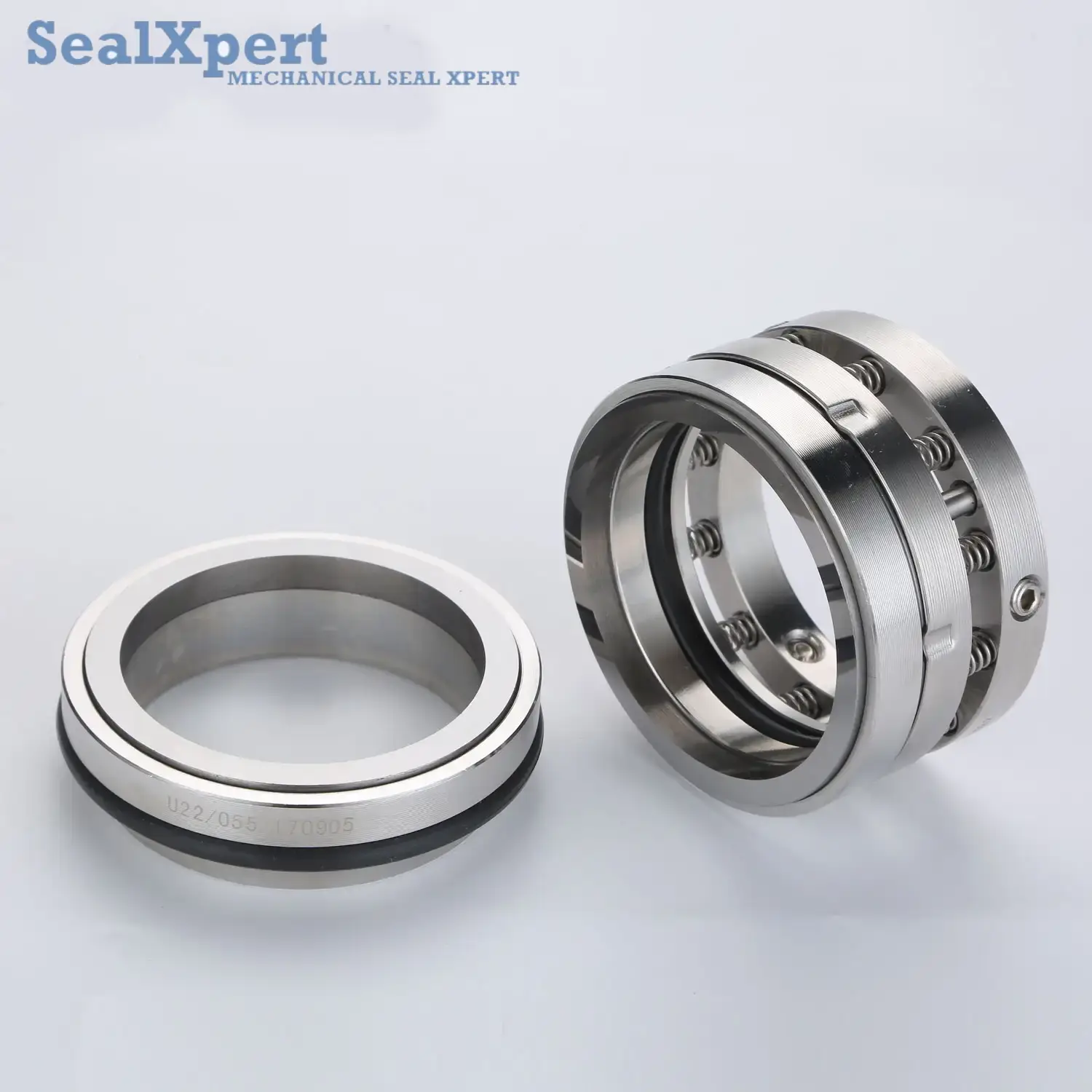

C20

C20

Basic Features

  • Structure: Single End
  • Pressure: Medium Pressure Mechanical Seals
  • Speed: General Speed Mechanical Seal
  • Temperature: High Temperature Mechanical Seal
  • Performance: Wear and Weak Corrosion
  • Standard: ISO3069, GB6556, DIN24960, EN12756
  • Model NO.: C20
  • Balance: Unbalanced
  • Specification: Inner Diameter: 14 mm to 120 mm
Category:

  • Operation Parameters:

    • Pressure: 1.2 MPa or less
    • Temperature: – 40 ~ 200 ºC
    • Linear Speed: 25 m/s or less

    Materials:

    • Rotary Ring Face: Carbon/SiC/TC
    • Stationary Ring Face: Carbon/SiC/TC
    • Elastomers: NBR/EPDM/FKM/PTFE
    • Springs: SS304/SS316
    • Metal Parts: SS304/SS316

    Mediums: water, oil and amorphism acid, alkali, salt and organic solvents.

    Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

Description

Structural Features: single end, multi springs, unbalanced, independent rotary direction, screw pin and lug combined transmission. The transmission method is simple and reliable. All compensation components are pre-assembled so the seal component itself is easy to be installed with great compensation performance. The loads on seal faces are well balanced and the whole seal is easy to adjust with stable sealing performance.

Industrial Standards: ISO3069, GB6556, DIN24960, EN12756

Scopes of Application: widely used in petroleum, chemical engineering, chemical fiber, food and beverage production, pharmacy, paper pulp production and environmental industries.
