EX

EX

Basic Features

  • Structure: Single-End
  • Pressure: Medium Pressure Mechanical Seals
  • Speed: General Speed Mechanical Seal
  • Temperature: General Temperature Mechanical Seal
  • Performance: Wear and Corrosion
  • Standard: DIN24960, ISO3069, GB6556
  • Model NO.: EX
  • Balance: Unbalanced
  • Specification: Inner Diameter: 18 mm to 70 mm
Category:

  • Operation Parameters:

    • Pressure: 0 ~ 0.8MPa
    • Temperature: – 20 ~ 100 ºC
    • Linear Speed: 10 m/s or less

    Materials:

    • Rotary Ring Face: TC
    • Stationary Ring Face: TC/SiC
    • Elastomers: EPDM/VITON/PTFE/Aflas
    • Springs: SS304/SS316
    • Metal Parts: SS304/SS316

    Mediums: high viscosity oil.

    Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

Description

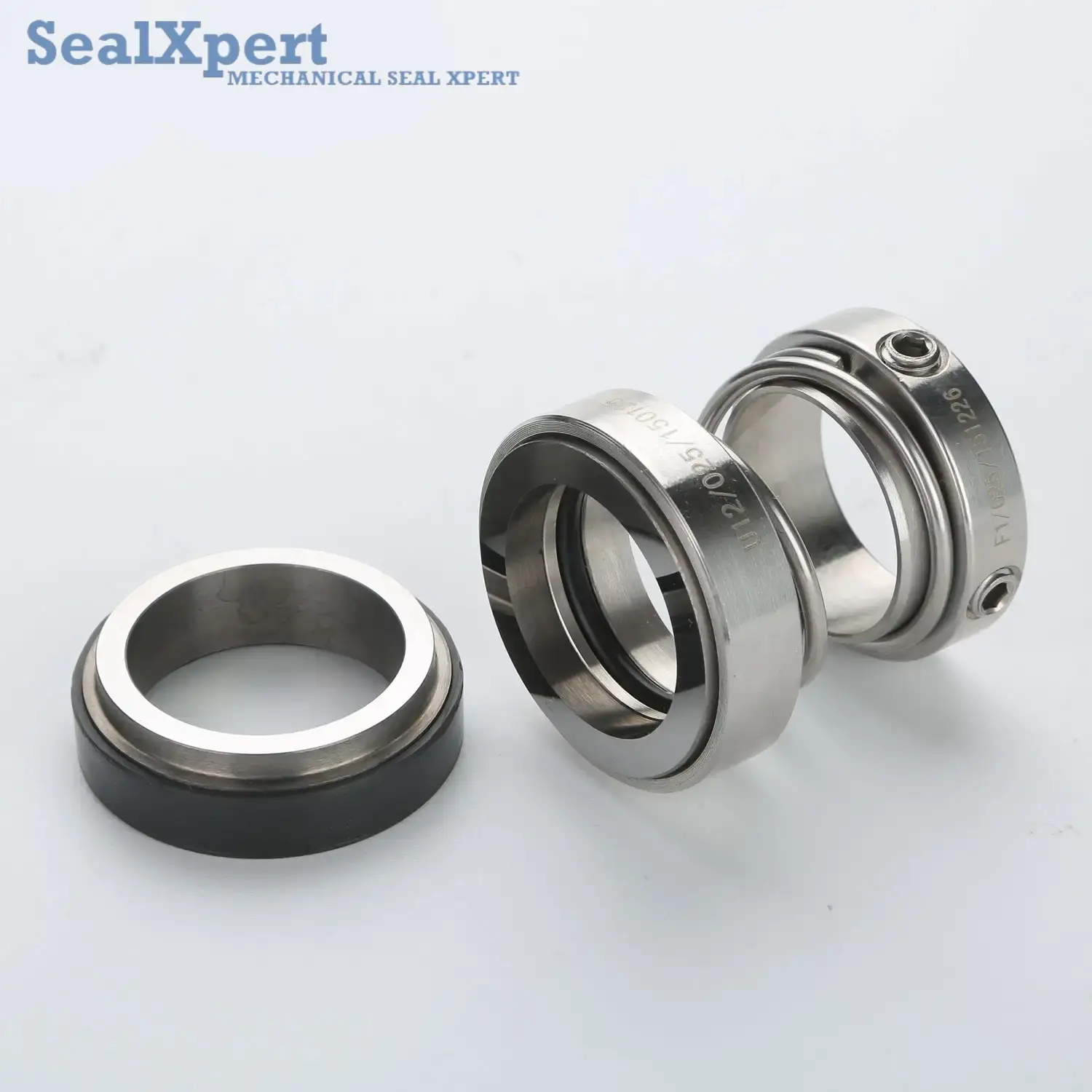

Structural Features: single end, unbalanced, single coil spring, fixed rotation direction, spring transmission.

Industrial Standards: DIN24960, ISO3069, GB6556

Scopes of Application: specifically designed for Vortex Pumps, widely used in chemical processing, oil refining, petrochemical engineering, power generation and pharmacy.
