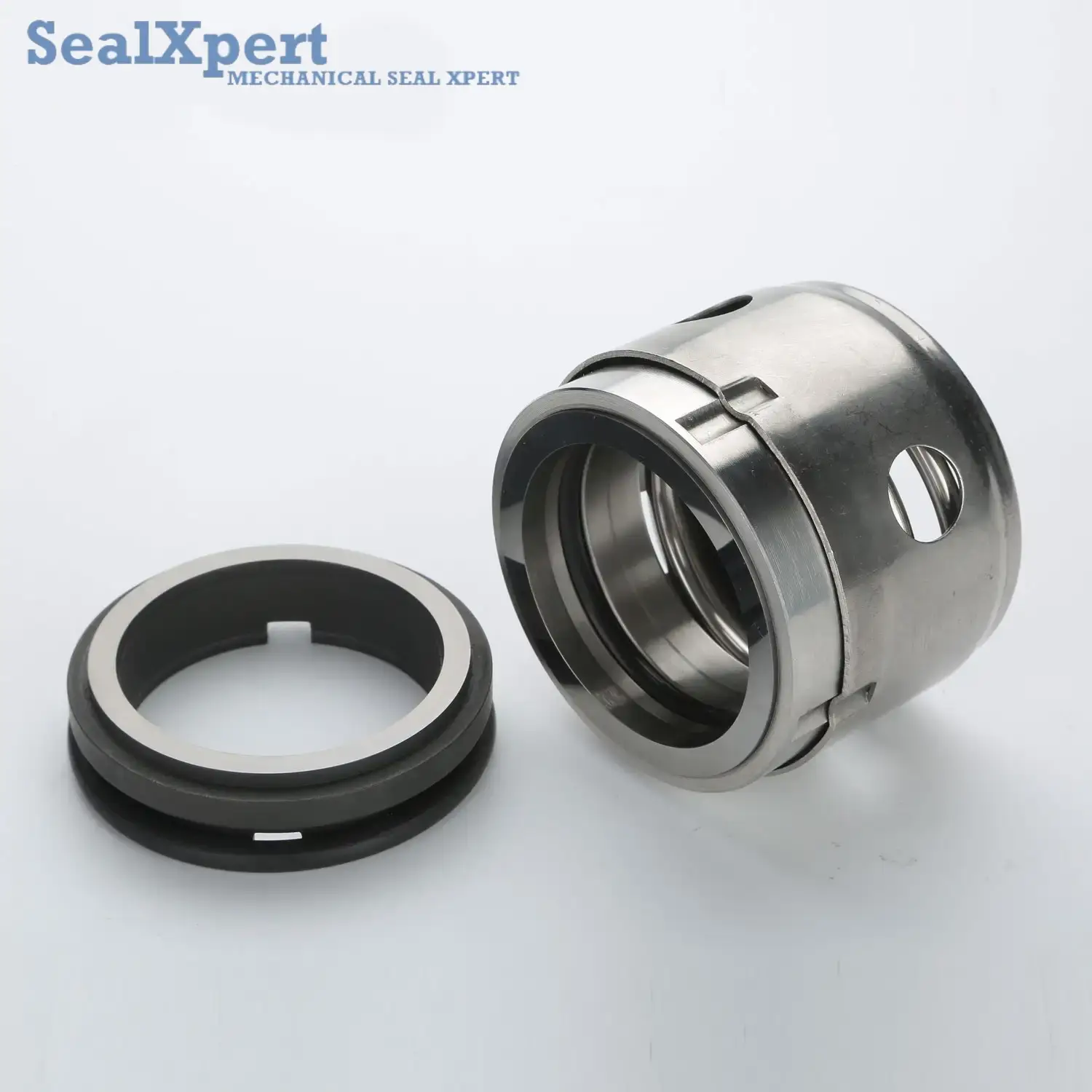

GX

GX

Basic Features

  • Structure: Single-End
  • Pressure: Medium Pressure Mechanical Seals
  • Speed: General Speed Mechanical Seal
  • Temperature: High Temperature Mechanical Seal
  • Performance: Wear and High Temperature
  • Standard: GB6556
  • Model NO.: GX
  • Balance: Unbalanced
  • Specification: Inner Diameter: 30 mm to 90 mm
Category:

  • Operation Parameters:

    • Pressure: 0 ~ 1MPa
    • Temperature: – 20 ~ 200 ºC
    • Shaft Running Speed: 3000 r/min or less

    Materials:

    • Rotary Ring Face: SiC/TC/Carbon
    • Stationary Ring Face: Carbon/SiC/TC
    • Elastomers: EPDM/Viton/PTFE
    • Springs: SS304/SS316
    • Metal Parts: SS304/SS316

    Mediums: oil, water, amorphism acid, alkali, and organic solvents.

    Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

Description

Structural Features: GB6556 standard, single and big spring with spring protection. Simple structure component seal.

Industrial Standards: GB6556

Scopes of Application: widely used in different types of industrial pumps, chemical pumps and water pumps.
