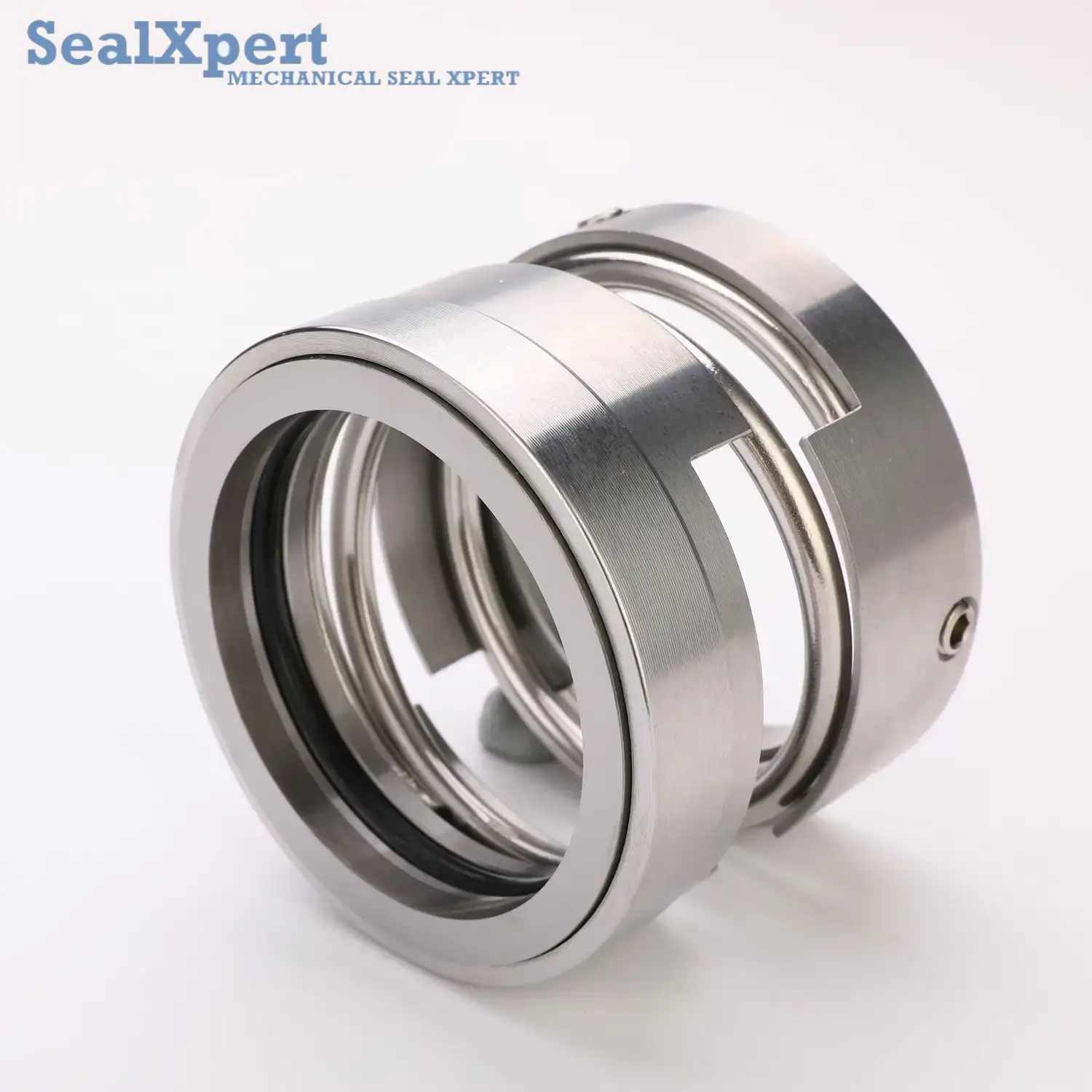

M524

M524

Basic Features

  • Structure: Single End
  • Pressure: Medium Pressure Mechanical Seals
  • Speed: General Speed Mechanical Seal
  • Temperature: General Temperature Mechanical Seal
  • Performance: Wear and Weak Corrosion
  • Standard: Specifically Customized
  • Model NO.: M524
  • Balance: Unbalanced
  • Specification: Inner Diameter: 30 mm to 160 mm
Category:

  • Operation Parameters:

    • Pressure: 0 ~ 1.0 MPa or less
    • Back Pressure: 0 ~ 0.2 MPa
    • Temperature: – 20 ~ 150 ºC
    • Linear Speed: 15 m/s or less

    Materials:

    • Rotary Ring: SiC/TC
    • Stationary Ring: Carbon/SiC/TC
    • Elastomers: NBR/FKM/PTFE
    • Springs: SS304/SS316
    • Metal Parts: 2Cr13/SS304/SS316

    Mediums: oil, water, acid, alkali and corrosive mediums.

    Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

Description

Structural Features: single end, single spring, unbalanced, fixed direction of rotation, folk transmission. The transmission is reliable and the seal is difficult to be jammed with simple structure and stable performance.

Industrial Standards: Specifically Customized

Scopes of Application: mainly used in centrifugal pumps, submerged motors, clean water and sewage pumps, piping pumps and especially used in immersible pumps for water supply, sewage treatment and environmental protection industries. This component can work as an alternative to the similar product (M524 series) of EagleBurgmann.
