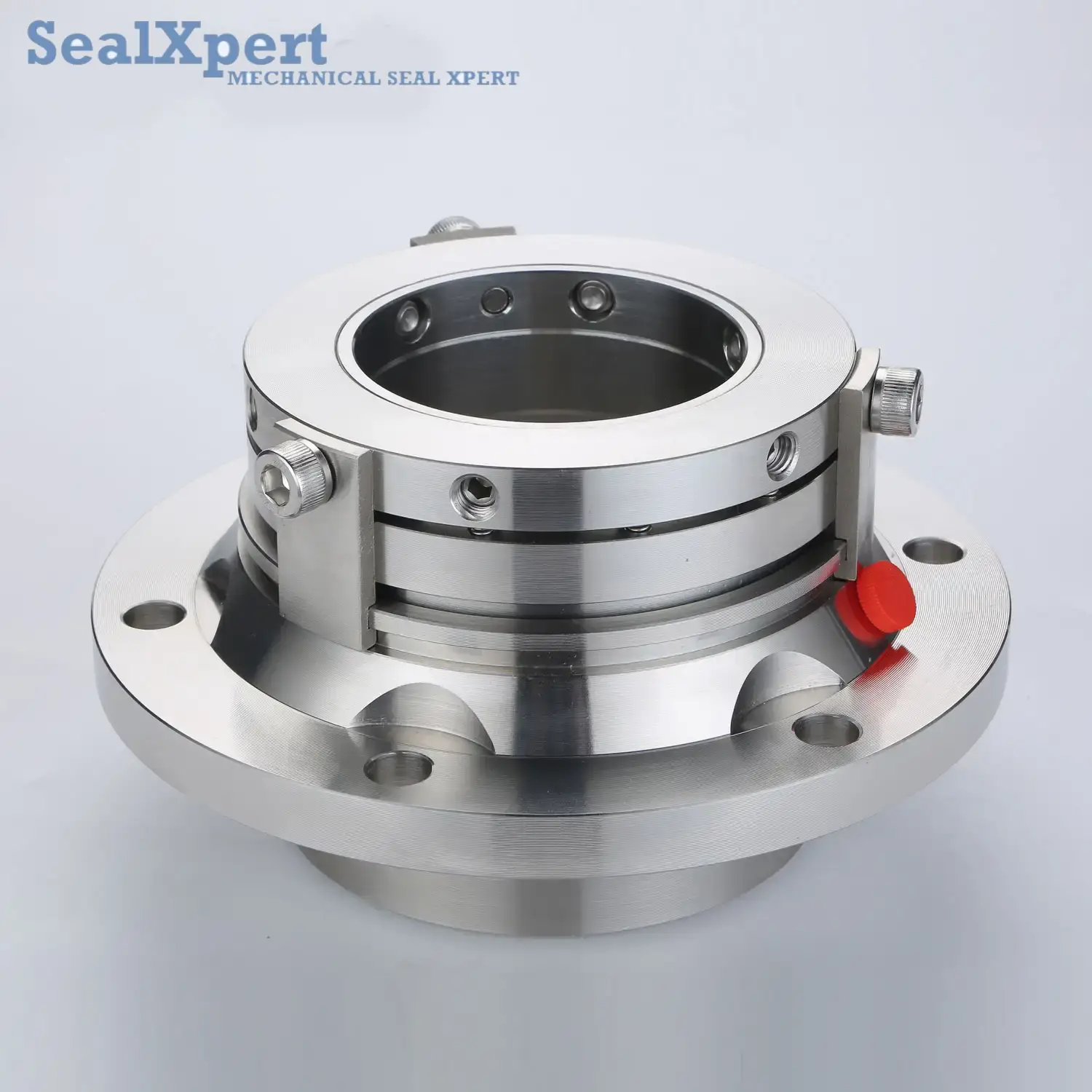

ZB

ZB

Basic Features

  • Structure: Double-end
  • Pressure: General Pressure Mechanical Seals
  • Speed: General Speed Mechanical Seal
  • Temperature: General Temperature Mechanical Seal
  • Performance: Wear and Corrosion
  • Standard: JB/T1472-94
  • Model NO.: ZB
  • Balance: Balanced
  • Specification: Inner Diameter: 30 mm to 120 mm
Category:

  • Operation Parameters:

    • Pressure: 2.8 MPa or less
    • Temperature: – 20 ~ 180 ºC
    • Linear Speed: 15 m/s or less

    Materials:

    • Rotary Ring: SiC/TC
    • Stationary Ring: Carbon/SiC/TC
    • Elastomers: NBR/EPDM/Viton/PTFE
    • Springs: SS304/SS316
    • Metal Parts: SS304/SS316/SS316L

    Mediums: oil, water, amorphism acid. alkali, salt, and organic solvents.

    Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

Description

Structural Features: double end, multi spring, balanced, independent direction of rotation. This cartridge seal has a high reliability.

Industrial Standards: JB/T1472-94

Scopes of Application: designed for chemical pumps, screw pumps, oil pumps, and mining equipment, mainly used in mining and related industries.
