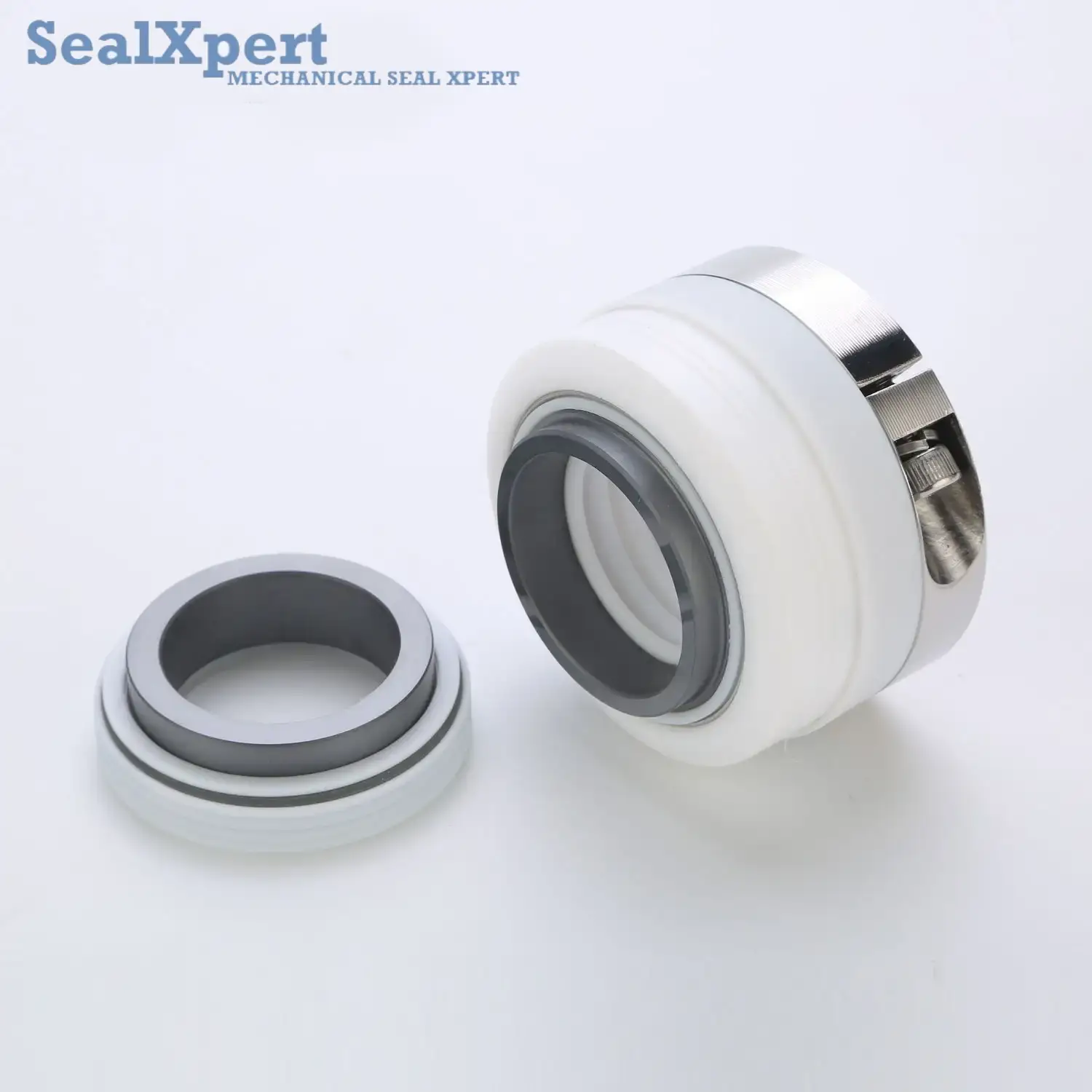

WB2

WB2

Basic Features

  • Structure: Single End
  • Pressure: Low Pressure Mechanical Seals
  • Speed: Medium Speed Mechanical Seal
  • Temperature: General Temperature Mechanical Seal
  • Performance: Wear and Corrosion
  • Standard: JB/T7372-94
  • Model NO.: WB2 (Type 152)
  • Balance: Balanced
  • Specification: Inner Diameter: 20 mm to 100 mm
Category:

  • Operation Parameters:

    • Pressure: 0.6 MPa or less
    • Temperature: – 20 to 120 ºC
    • Linear Speed: 10 m/s or less

    Materials:

    • Rotary Ring Face: Filled PTFE (Teflon)/SiC
    • Stationary Ring Face: Al2O2/SiC/Carbon
    • Elastomers: PTFE
    • Metal Parts: SS304/SS316

    Mediums: sulfuric acid hydrocarbon acid, phosphoric acid, acetic acid, and nitric acid With various degrees, etc.

    Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

Description

Structural Features: single end, balanced, independent direction of rotation, PTFE bellow, bellow transmission, external type mechanical seal. This component is easy to install. The bellow provides pressure compensation to the sealing faces. The bellow design can prevent radial runout so the floatability of the rotary ring is increased.

Industrial Standards: JB/T7372-94

Scopes of Application: widely used in acid proof pumps, plastic pumps, alkali pumps, vacuum equipment and other rotary devices.
