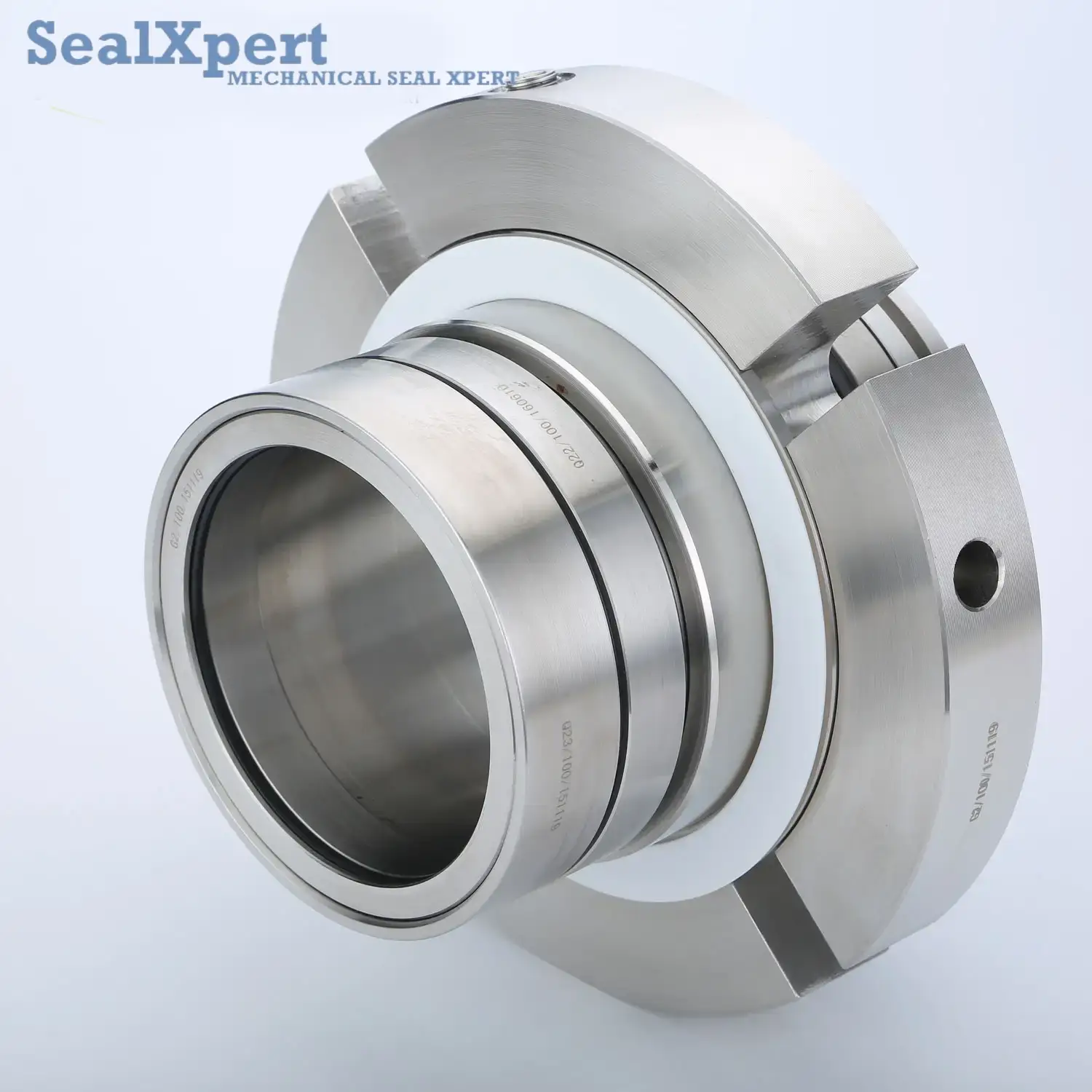

SB2

SB2

Basic Features

  • Structure: Double-End
  • Pressure: Medium Pressure Mechanical Seals
  • Speed: High Speed Mechanical Seal
  • Temperature: General Temperature Mechanical Seal
  • Performance: Corrosion
  • Standard: Specific Customization
  • Model NO.: SB2
  • Balance: Balanced
  • Specification: Inner Diameter: 30 mm to 100 mm
Category:

  • Operation Parameters:

    • Pressure: 1.5 MPa or less
    • Temperature: – 40 ~ 180 ºC
    • Linear Speed: 15 m/s or less

    Materials:

    • Rotary Ring Face
    • Medium Side: SiC/TC
    • Sealing Water Side: SiC/TC
    • Stationary Ring Face
    • Medium Side: SiC/TC
    • Sealing Water Side: Carbon/SiC/TC
    • Elastomers: Viton/EPDM/PTFE/Aflas
    • Springs: SS316/HC276
    • Metal Parts: SS304/SS316/SS316L/2507/2205

    Mediums: oil, water, solvents and paper pulp.

    Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

Description

Structural Features: double end, multi springs, balanced, independent rotary direction, still structure, pin transmission. The still springs are suitable for high operating speed. The springs are separated from the sealed mediums so they will not be jammed. Piston design allows great axial shifting. The seal is cartridge design with easy installation and reliable performance.

Industrial Standards: Specific Customization.

Scopes of Application: designed for paper pulp pumps, condensation pumps, filters, pressure screens and other rotary devices for chemical engineering, pulp making and filtering and sewage treatment. This component can work as an part of ANDRITZ Safematic seal support system.
