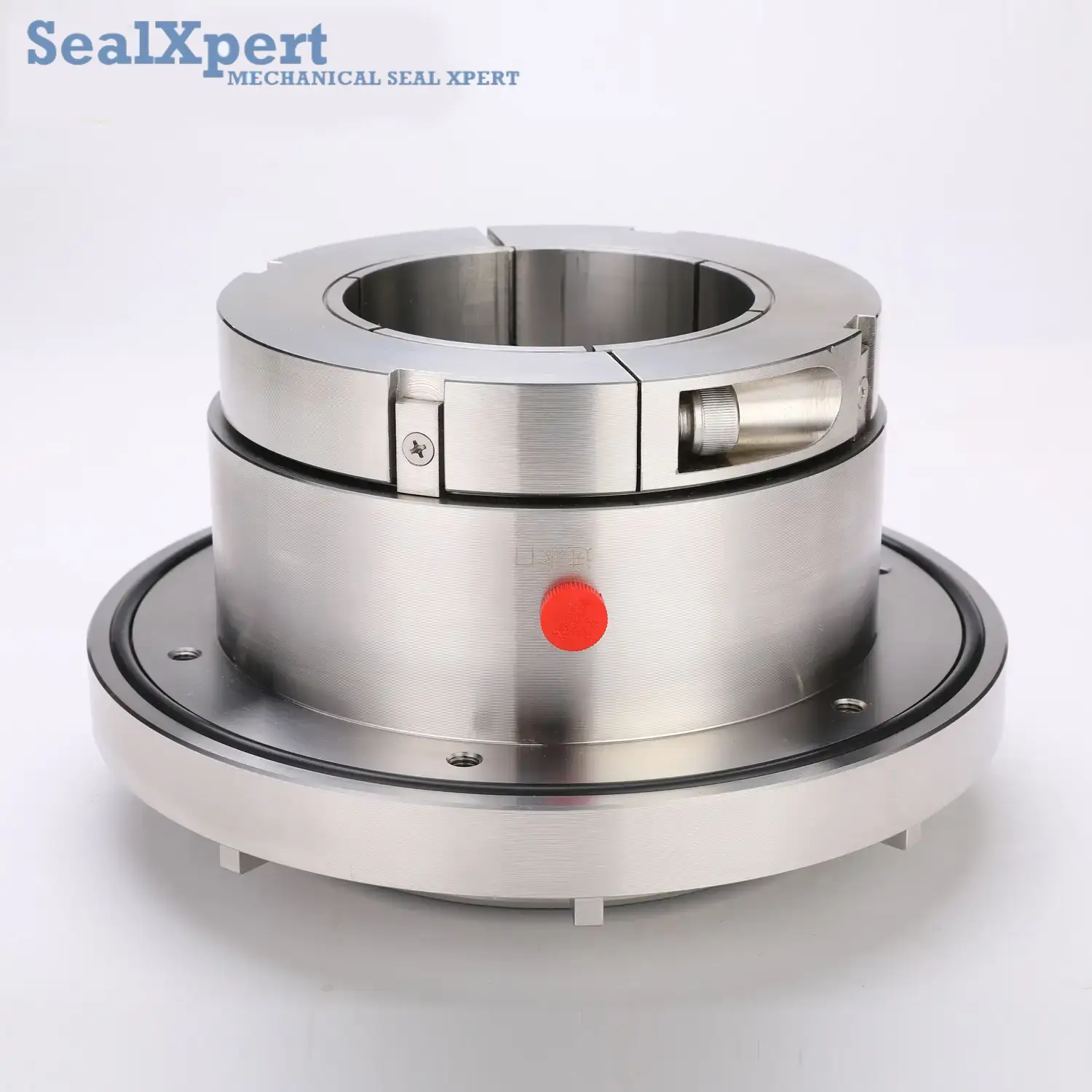

TL1-S1

TL1-S1

Basic Features

  • Structure: Single-End
  • Pressure: Medium Pressure Mechanical Seals
  • Speed: General Speed Mechanical Seal
  • Temperature: General Temperature Mechanical Seal
  • Performance: Wear and Corrosion
  • Standard: Enterprise Standard
  • Model NO.: TL1-S1
  • Balance: Unbalanced
  • Specification: Inner Diameter: 60 mm, 80 mm and 100 mm
Category:

  • Operation Parameters:

    • Pressure: 0 ~ 1.0 MPa
    • Temperature: – 20 ~ 80 ºC
    • Shaft Speed: 3000 r/m or less
    • Solid Concentration: 30% or less
    • Medium Viscosity: not higher than 12 mPa.s

    Materials:

    • Rotary Ring Face: SiC/TC
    • Stationary Ring Face: SiC/TC
    • Elastomers: Viton/PTFE
    • Springs: SS304/SS316/HC-276
    • Metal Parts: 410S/SS304/SS316/SS316L/2205/2507

    Mediums: cypsum slurry, filtered water and mill slurry.

    Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

Description

Structural Features: single end, multiple spring, unbalanced, independent direction of rotation, static compensation unit structure and single cartridge mechanical seal.

Industrial Standards: Enterprise Standard.

Scopes of Application: mainly used in FGD pumps, designed for Shuanglun Group, China.
