IH-25D351

IH-25D351

Basic Features

  • Structure: Single-End
  • Pressure: Low Pressure Mechanical Seals
  • Speed: General Speed Mechanical Seal
  • Temperature: General Temperature Mechanical Seal
  • Performance: Wear and Corrosion
  • Standard: Customized Design
  • Model NO.: IH-25D351
  • Balance: Balanced
  • Specification: Inner Diameter: 25 mm
Category:

  • Operation Parameters:

    • Pressure: 0 ~ 1.2 MPa
    • Temperature: 120 ºC or less
    • Shaft Speed: 3000 r/m or less
    • Solid Concentration: not higher than 30%

    Materials:

    • Rotary Ring Face: SiC
    • Stationary Ring Face: SiC
    • Elastomers: Viton/EPDM/FFKM
    • Springs: SS304/SS316/HC-276
    • Metal Parts: SS304/SS316L/2507/2205

    Mediums: paper pulp, coal cinder, slag, ash and other fluids with solid powder.

    Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

Description

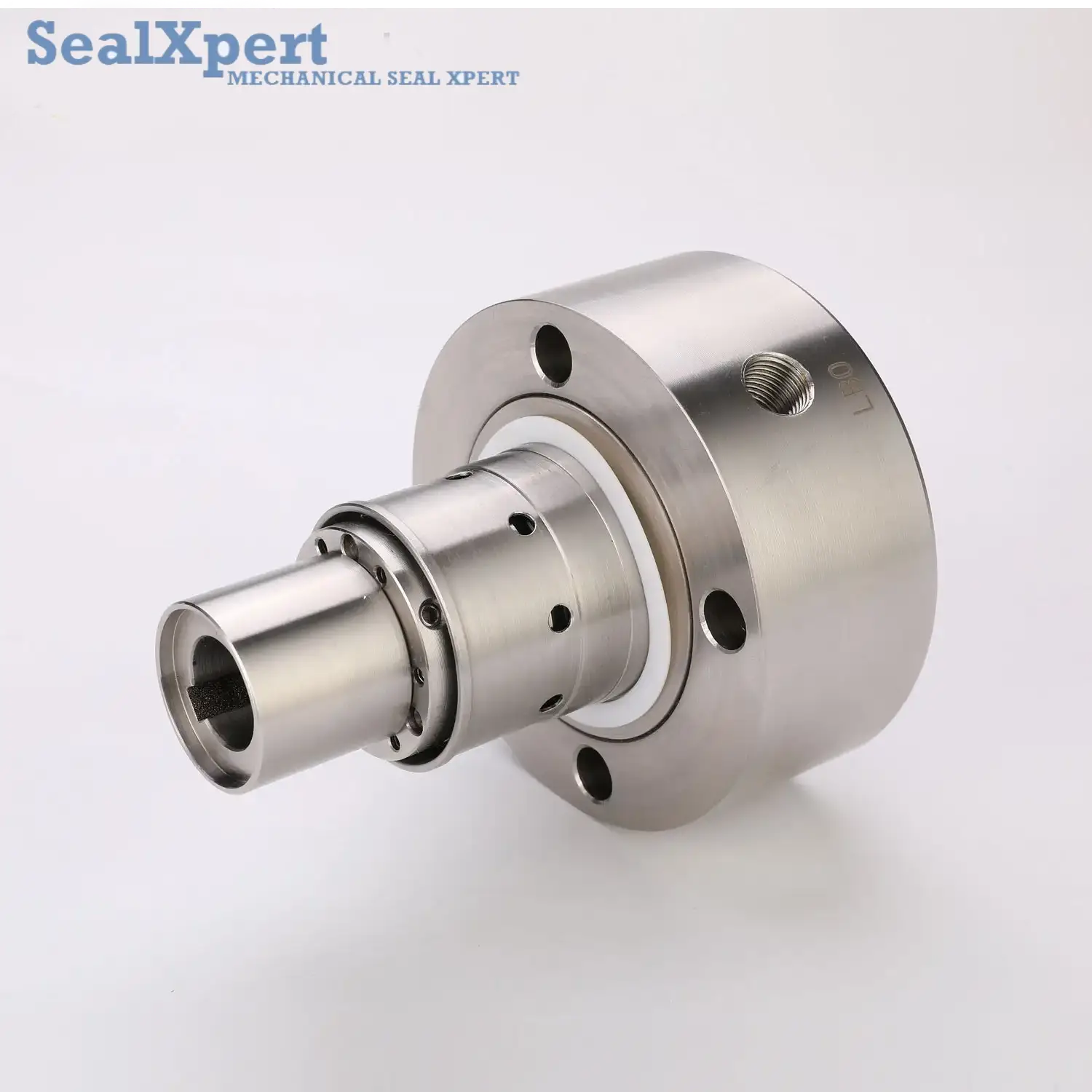

Structural Features: single end, multiple springs, with spring protector, balanced, independent direction of rotation. The shaft sleeve, gland, flange and the core seal are all installed as one cartridge. Easy installation, no need to disassemble the seal cavity for the installation.

Industrial Standards: Customized Design

Scopes of Application: mainly used in thermal power plants, paper-making equipment, alumina plants, flue gas desulphurization (AKA FGD), deashing system (for power plants), chemical water pumps and slurry pumps.
