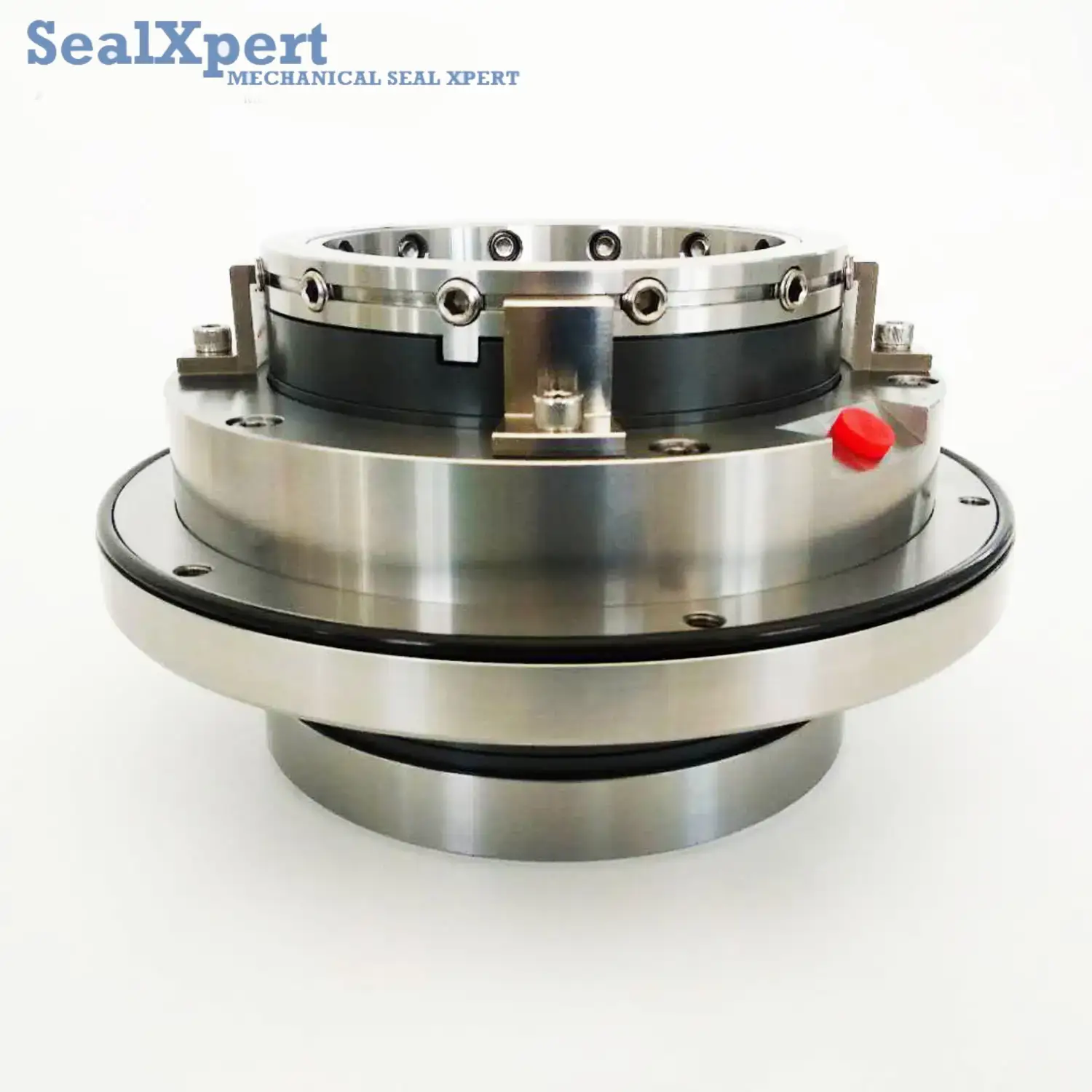

ZJ1-D1

ZJ1-D1

Basic Features

  • Structure: Double-End
  • Pressure: Medium Pressure Mechanical Seals
  • Speed: General Speed Mechanical Seal
  • Temperature: General Temperature Mechanical Seal
  • Performance: Wear
  • Standard: DIN24960, ISO3069, GB6556
  • Model NO.: ZJ1-D1
  • Balance: Balanced
  • Specification: Inner Diameter: 35 mm to 250 mm
Category:

  • Operation Parameters:

    • Pressure: not higher than 1.6 MPa
    • Temperature: – 20 ~ 150 ºC
    • Linear Speed: 15 m/s or less

    Materials:

    • Rotary Ring: SiC/TC
    • Stationary Ring: SiC/TC/Carbon
    • Elastomers: Viton/EPDM/Aflas
    • Springs: SS304/SS316/HC276
    • Metal Parts: 410S/SS304/SS316/SS316L/2205

    Mediums: solid capacity less than 25%, paper pulp, coal cinder, slag, ash and other fluids with solid powder.

    Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

Description

Structural Features: double end, multiple springs, balanced, independent direction of rotation, still structure and set screw transmission. The component is cartridge seal with easy installation. The still spring design is good for high speed running and can take the vibration of the pumps. The springs are not having contact with the mediums so that there will be no jam or corrosion caused by the high viscosity and crystallization active content. The seal face load is well balanced and the seal can work with a wide range of sealant pressure (upto 0.5 MPa) and the cooling efficiency is high.

Industrial Standards: DIN24960, ISO3069, GB6556

Scopes of Application: mainly used in flue gas desulphurization (AKA FGD) pumps, slurry pumps and paper pulp pumps for industries such as coal washery, mining, sewage treatment, paper making, metallurgy, power plants, and chemical engineering.
