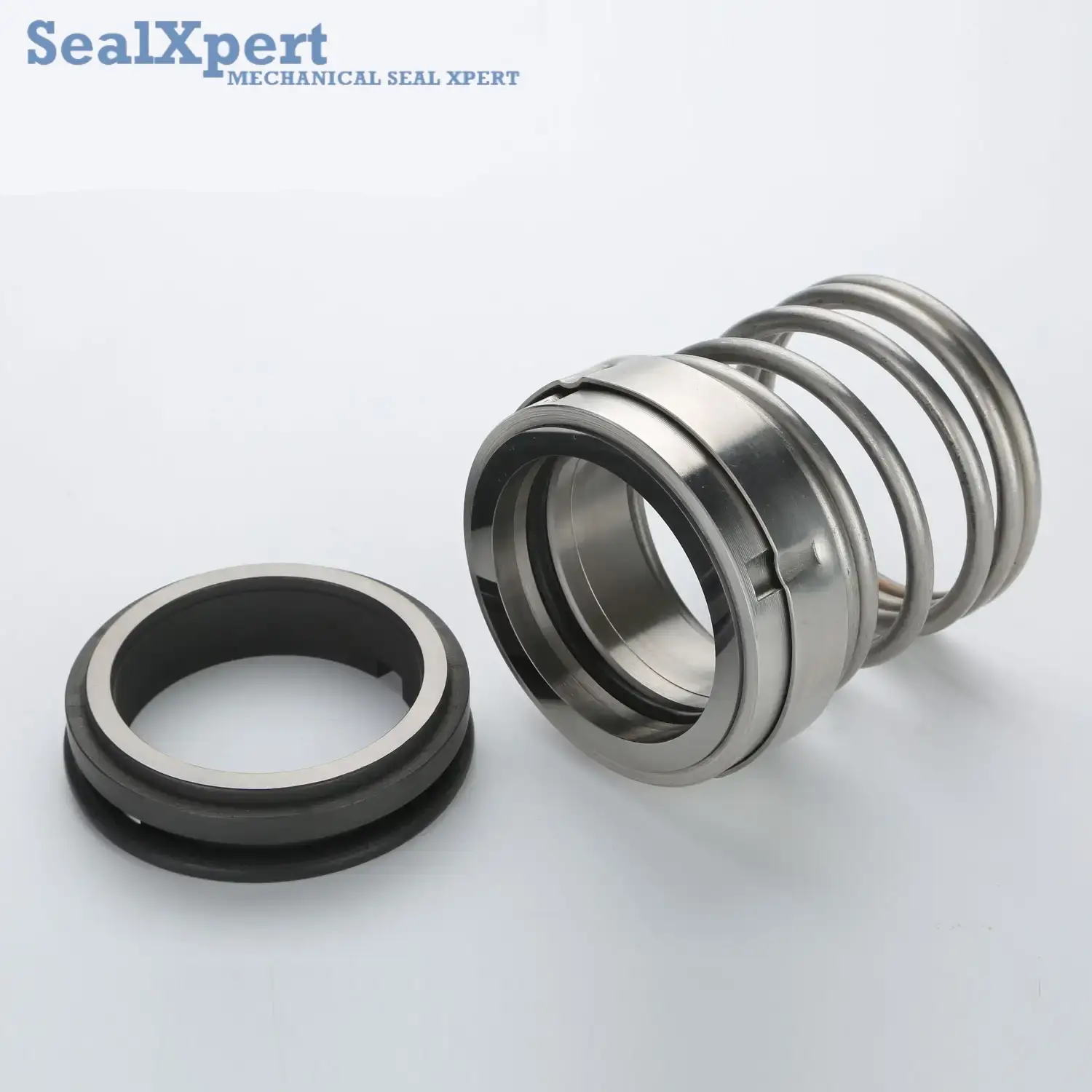

103

103

Basic Features

  • Structure: Single End
  • Pressure: Medium Pressure Mechanical Seals
  • Speed: General Speed Mechanical Seal
  • Temperature: High Temperature Mechanical Seal
  • Performance: Wear
  • Standard: DIN24960, ISO3069, GB6556-94
  • Model NO.: Type 103
  • Balance: Unbalanced
  • Specification: Inner Diameter: 20 mm to 120 mm
Category:

  • Operation Parameters:

    • Pressure: 0.8 MPa or less
    • Temperature: – 20 ~ 220 ºC
    • Linear Speed: 15 m/s or less

    Materials:

    • Rotary Ring: Carbon/SiC/TC
    • Stationary Ring: SiC/TC
    • Elastomers: NBR/EPDM/Viton/Aflas/PTFE/FFKM
    • Springs: SS304/SS316
    • Metal Parts: 410S/SS304/SS316/SS316L

    Mediums: weak acid, weak alkalis, water and solvents.

    Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

Description

Structural Features: single end, unbalanced, fixed direction of rotation, touched coil spring transmission. This component has a touched coil spring so you need to pay attention to the shaft rotating direction.

Industrial Standards: DIN24960, ISO3069, GB6556-94

Scopes of Application: widely used in many types of chemical pumps and clean water pumps.
