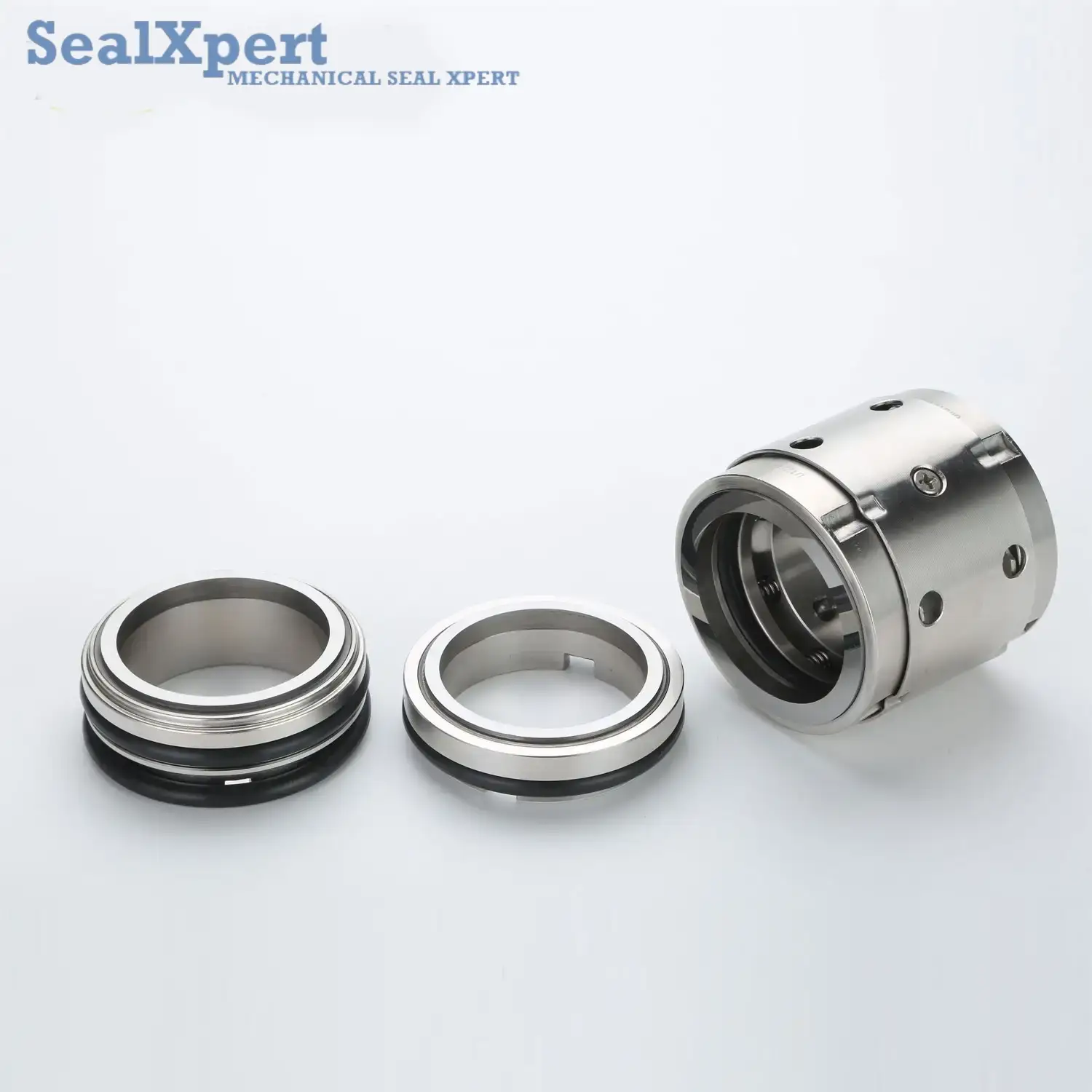

224TM

224TM

Basic Features

  • Structure: Double-End
  • Pressure: Medium Pressure Mechanical Seals
  • Speed: General Speed Mechanical Seal
  • Temperature: High Temperature Mechanical Seal
  • Performance: Wear and Weak Corrosion
  • Standard: DIN24960, ISO3069, GB6556
  • Model NO.: 224TM
  • Balance: Balanced
  • Specification: Inner Diameter: 20 mm to 120 mm
Category:

  • Operation Parameters:

    • Pressure: 0 ~ 2 MPa
    • Temperature: – 10 ~ 200 ºC
    • Linear Speed: 25 m/s or less

    Materials:

    • Rotary Ring Face: SiC/TC
    • Stationary Ring Face: SiC/TC
    • Elastomers: EPDM/Viton/FFKM/Aflas
    • Springs: SS304/SS316
    • Metal Parts: SS304/SS316/SS316L

    Mediums: oil, water, amorphism acid, alkali, salt, and organic solvents.

    Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

Description

Structural Features: double end, balanced, multi spring. The force on the sealing faces are balanced due to the multiple spring design. Back-to-back structure builds up the double seal structure.

Industrial Standards: DIN24960, ISO3069, GB6556

Scopes of Application: widely used in many types of pumps and mixers. This component can works as a replacement seal of EagleBurgmann 224 series mechanical seals.
