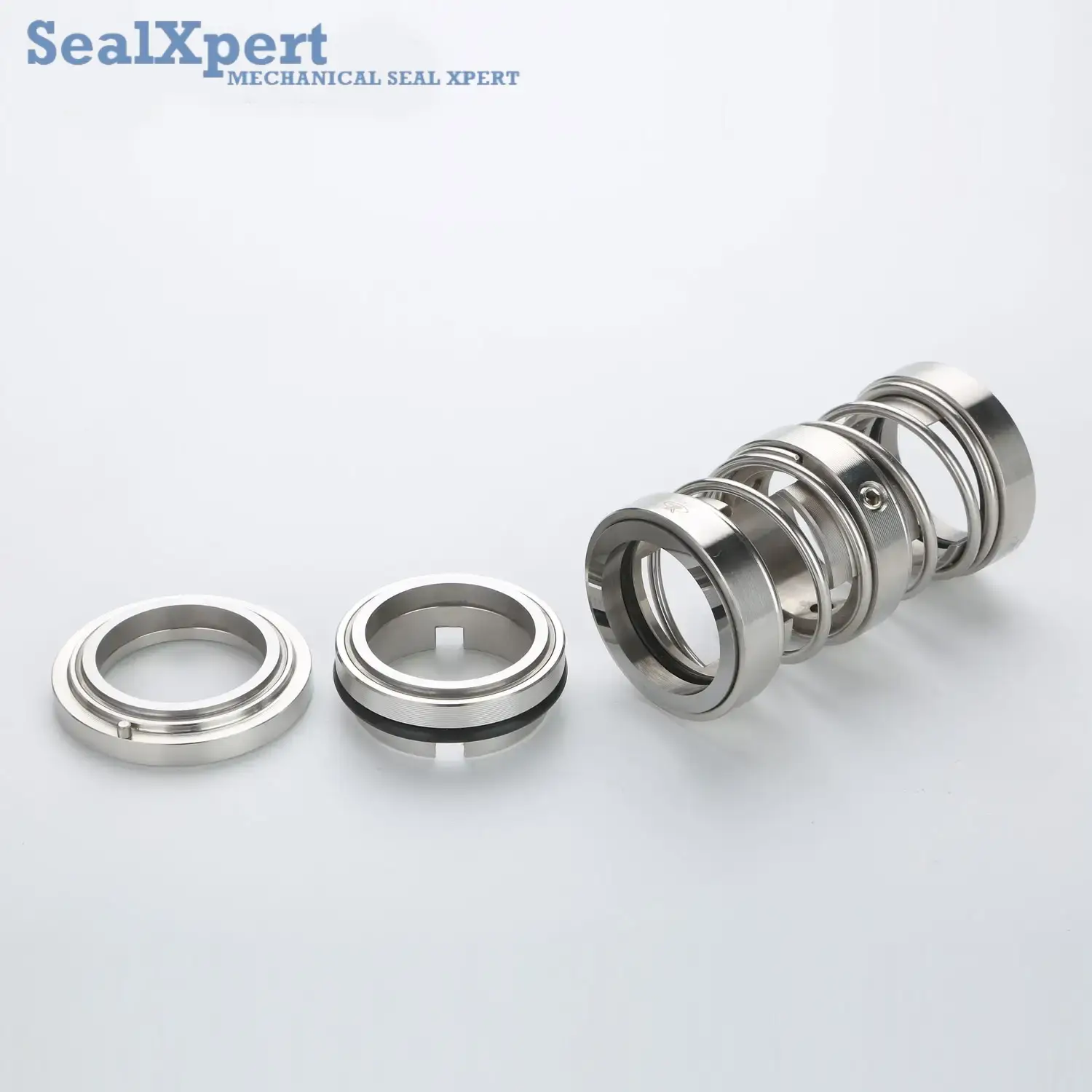

U208

U208

Basic Features

  • Structure: Double-End
  • Pressure: Medium Pressure Mechanical Seals
  • Speed: High Speed Mechanical Seal
  • Temperature: General Temperature Mechanical Seal
  • Performance: Wear
  • Standard: None
  • Model NO.: U208, U208-D and U208-N
  • Balance: Unbalanced
  • Specification: Inner Diameter: 18 mm to 80 mm
Category:

  • Operation Parameters:

    • Pressure: 0.1 ~ 1.8 MPa or less
    • Temperature: – 20 ~ 150 ºC
    • Linear Speed: 15 m/s or less

    Materials:

    • Rotary Ring Face: SiC/TC
    • Stationary Ring Face: SiC/TC
    • Elastomers: NBR/EPDM/Viton/Aflas/PTFE/FFKM
    • Springs: SS304/SS316/HC-276
    • Metal Parts: 410S/SS304/SS316/SS316L/Hastelloy

    Mediums: oil, water, beverage, food, biochemical liquids.

    Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

Description

Structural Features: double end, single spring, balanced, any direction of rotation, drive sleeve transmission. This component has a simple structure and high reliability.

Industrial Standards: None

Scopes of Application: mainly used in Food Biochemical Process Pumps.
